C-660 Inkjet Web Press

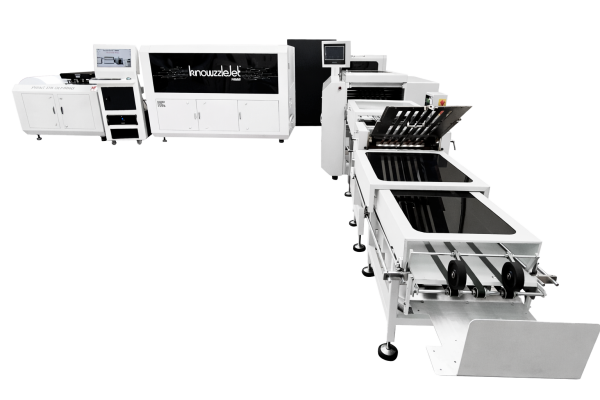

Knowzzlejet C-660 Colour Inkjet Web Press
ROLL TO SHEET ROLL TO FOLD ( A4/A5 ) 16 PAGES
Specifications of Substrate Transport System
- Web width: up to 660 mm
- Print width: As per the Inkjet Printing system option selected
- Roll Un-winder with servo driven Web Tension – Infeed & Outfeed Drives
- Print Section with Infeed/outfeed Servo Driven rolls
- Space for Dual print stations for Duplex printing
- Delivery device: Motorized variable sheet cutting system, servo driven
- Cut off range: 400mm – 1100 mm as required
- Touch screen HMI console on machine
- Minimum Working Space Requirement:10.0 Meter x 9.0 Meter
- Weight: 4.5 tons (Approx.)
- Power requirement: 415 V / 3 phase / 50 Hz (30KW)
Technical Specifications
| Model | knowzzleJet C660 |
| Inkjet Print Head Type | Memjet Duraflex Inkjet Printhead Technology |
| Print width | Up to 648 mm (25.5 Inch) Duplex |
| Print Resolution (s) | 1600X1600 dpi, 1600X954 dpi, 1600 X 640 dpi |
| Drop Size | 2.1 pL |
| Max. Rated Speed | Up to 65m/min (215ft. /Min) * |
| Print Head Control Mechanism | Automatic capping, cleaning, and positioning |
| Ink Type | Water Based – Pigment |
| Color(s) | CMYK |
| Data Type | PDF printing Capability in Duplex mode |
| Electrical Requirements | Standard configuration – 220V-240 V (Single Phase), 50 Hz, 63 Amps through UPS *To be discussed for final configuration at the time of ordering |
*Speed is at 640 dpi and roll to roll configuration
